| Model | HBJX-W1400-DD |
| Speed | 100m/min, effective production speed: 70-85m/min |
| Power | 40KW |
| Finished Product | Width 75-1400mm, roll diameter 850mm |
| Dimension | length * width * height =6.0 * 2.8 * 2.5 meters (1400 model) |
| Model | HBJX-FB650SS with double layer single release and double recovery |
| Speed | Design speed: 90M/Min. Actual production speed: 45-75M/Min |
| Power | three-phase; 380V；50Hz. Installed power: ≤ 40KW |
| Finished Product | Minimum cutting width: 65mm;Maximum rolling width: 650mm |
| Dimension | (L*W*H):6.0*2.0*2.5M(for reference) |
| Model | Diaper core and Sanitary Napkin SAP Paper Folding Machine |
| Speed | Design speed is 300m/minute, stable production speed is 200-250 meters/minute |
| Power | main machine 5KW,Hot melt glue machine：8KW |
| Finished Product | Foldable width: 60-150mm sanitary napkin SAP paper and diaper core |
| Dimension | 3.5*1.2*3M |
| Model | Absorbent Core/SAP Paper Folding Machine |
| Speed | Design speed is 300m/minute, stable production speed is 200-250 meters/minute |
| Power | main machine 5KW,Hot melt glue machine：8KW |
| Finished Product | Foldable width: 60-150mm sanitary napkin absorbent paper and diaper core |
| Dimension | 3.5*1.2*3M |
| Model | HBJX-400ss-S2840 |
| Speed | Production speed of small squares: 380±20 pieces/min |
| Power | Three-phase, 380V, 50HZ. Total installed power of a single small box:30KW |
| Finished Product | Finished square : 28*40 mm: the smallest size that can be produced is 19*26cm, 60 grams; |
| Dimension | Square:28*40mm, Circle:Phi45mm, Square 40*55mm, |

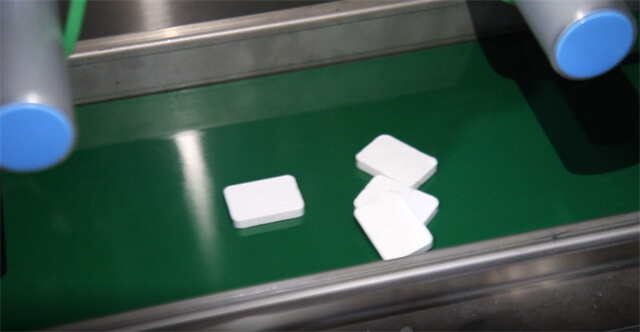

| Model | HBJX-YJ50 Compressed Bath Towel Machine |
| Speed | Design speed: 80 pcs/min, actual production speed: 45-60 pcs/min |
| Power | Three-phase, 380V, 50HZ. Total installed power:45KW |
| Finished Product | Round: 75mm |
| Dimension | Length*width*height: 4.2* 3.5*3.3 meters |
